Electrical circuit Class 12 Physics | Note

Electrical circuit Conceptual Note

1

Chapter: Electrical circuits

    • Understand Kirchhoff’s law as well as use it to calculate unknown parameters in electrical circuits.

    • Describe the circuit diagram and working of Wheatstone bridge circuit and understand its importance in real situation.

    • Describe Meter bridge and understand it

    • Know construction, working and importance of Potentiometer

    • Show the understanding of construction, working principle and uses of Potentiometer for comparing emfs and measuring internal resistance of cells

    • Understand the concept of super conductors. Know the meaning of perfect conductors and distinguish it from superconductor

    • Learn the technique to convert galvanometer into voltmeter and ammeter

Kirchhoff’s’ law:

Kirchhoff’s current law:                                  [KCL] [point law; node law; junction law]
Statement: The algebraic sum of current meeting at a point (junction) is always zero.

                                                          ΣI=0                                   ;at a point

  This law is based on the principle of conservation of charge.

For a point in an electrical circuit,

  • Entering current is taken positive.
  • Leaving current is taken negative.

In the given figure,
The Kirchhoff’s current law can be written as:

I1+I2+(I3)+(I4)=0

Restatement: sum of entering current = sum of outgoing current

Σincoming current=Σoutgoing current

Note:  The charges cannot accumulate at a junction.  The number of charges that arrive at a junction in a given time must leave in the same time in accordance with conservation of charges.

Kirchhoff’s voltage law:                                                        [KVL] [loop law; mesh law]

Statement: The algebraic sum of the potential differences in any loop, including those associated with emfs and those of resistive elements, must equal zero. That is,

ΣV=0                  ; for a closed loop

Here, V=E (emf), for a cell

V=IR (pd), for a resistor

This law is based on the principle of conservation of energy.

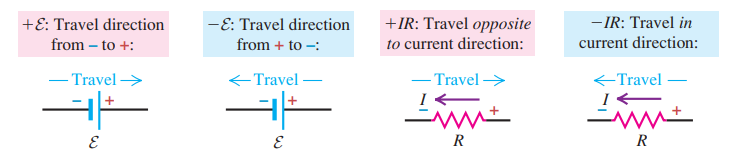

Sign convention: In a closed loop in an electrical circuit,

  • Gain in potential is positive.
  • Loss in potential is negative.

In the given figure,

The Kirchhoff’s voltage law in closed loop ADCBA:

E1+IR3+IR2+E2E3+IR4+IR1=0
